Needle Valve - SS2032

Ask a question
  • Full Engineer Workshop

  • In House Testing

  • Australian Owned and Operated Since 1984

  • ISO 9001 Quality Standards

Data Sheet

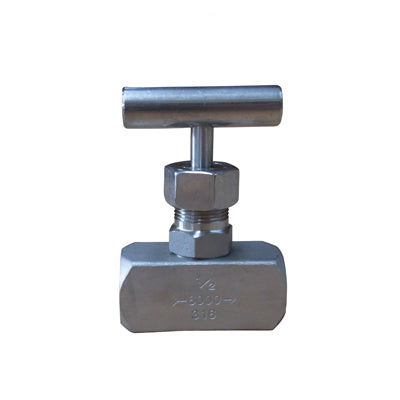

Threaded Needle Valve - SS2032

The Threaded Needle Valve from Challenger Valves is a versatile valve designed for industrial, chemical, and general applications where precise flow control is required. It is built with stainless steel construction, ensuring excellent durability and resistance to corrosion.

This needle valve features threaded BSPT ends, providing secure and leak-free connections in various piping systems. The investment cast body construction guarantees precise manufacturing, resulting in a robust and long-lasting valve.

With its screwed-in bonnet design, the valve offers a secure and reliable seal, preventing leakage and ensuring optimal performance. The T-handle operation allows for easy and precise flow control.

The Threaded Needle Valve has a pressure rating of 6000 PSI, making it suitable for high-pressure applications where accurate flow regulation is crucial. It has a wide working temperature range of -20°C to 200°C, allowing for reliable performance in diverse operating conditions.

To ensure quality and reliability, the valve undergoes thorough testing and inspection according to API598 standards.

In summary, the Threaded Needle Valve from Challenger Valves offers precise flow control and exceptional durability. With its stainless steel construction, threaded BSPT ends, investment cast body, screwed-in bonnet, T-handle operation, high-pressure rating, wide temperature range, and compliance with API598 standards, it is an excellent choice for industrial, chemical, and general applications. Choose the Threaded Needle Valve for its reliability, longevity, and precise flow regulation capabilities.

Haitamia Threaded Needle Valve SS2032


Threaded Needle Valve
  • Stainless Steel
  • DN8 - DN50
  • Threaded BSPT
Pressure rating
  • 6000 PSI
Design standard
  • API598
Operating temperature
  • 20°C - 200°C

Optional Extras
