HKC Pneumatic Actuator - ETS

Ask a question
  • Full Engineer Workshop

  • In House Testing

  • Australian Owned and Operated Since 1984

  • ISO 9001 Quality Standards

Data Sheet





Introducing the HKC ATS Model Scotch Yoke Actuator, the perfect solution for precise and reliable valve automation. The heavy-duty pneumatic actuator is designed for large size, high torque rotary valve applications, providing safe and reliable operation with a wide range of torque outputs. Available in either double-acting or spring return configurations, the HKC ATS Model Actuator features a versatile modular design that can be customized to meet your specific needs.

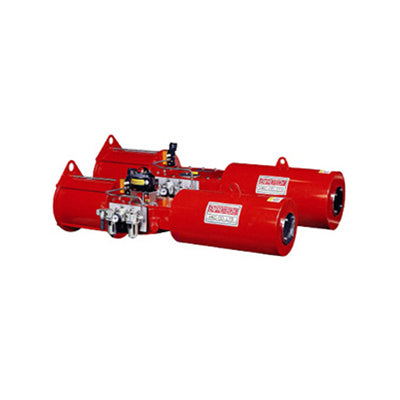

HKC Pneumatic Actuator ETS

Specifications

Brand
HKC
Item
Pneumatic Actuator
Model
ETS
Material
  • Steel Alloy
Connection standard
  • MSS or ISO flange standard.
Pressure rating
  • Standard: 3-8 bar
Output-torque
  • 495 - 250,000Nm
Operating temperature
  • Standard: -20 to +80 °C
  • Low temperature: -60 to +60 °C
  • High temperature: -20 to +100 °C

Optional Extras

Optional-extras
  • Option: Jack screw override
  • Option: Hydraulic override
