Butterfly Valve - BFL

Ask a question
  • Full Engineer Workshop

  • In House Testing

  • Australian Owned and Operated Since 1984

  • ISO 9001 Quality Standards

Data Sheet

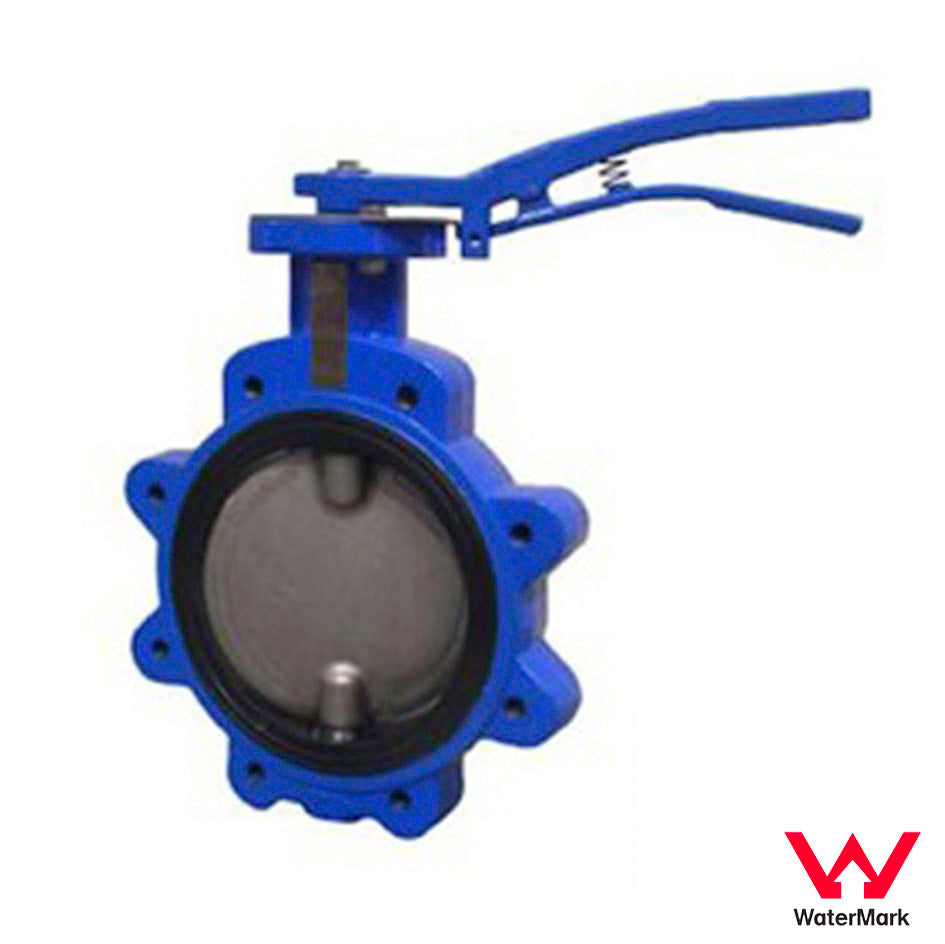

Resilient Seated Lugged Butterfly Valve - BFL

The Resilient Seated Butterfly Valve from Challenger Valves is a top-quality valve designed and tested in accordance with AS4795.1 standards. It is OceanaMark certified by IAPMO R&T Oceana (License No. OMK32103) and WaterMark approved (License No. WM-032103), ensuring compliance with industry standards. Additionally, it is WSAA accredited with an appraisal number: PA 2102, further emphasizing its quality and reliability.

This butterfly valve has undergone water quality testing and approval to AS4020, ensuring its suitability for water applications without compromising water quality. Its bi-directional bubble-tight sealing ensures a reliable and leak-free operation in both flow directions. The vulcanized seat is securely held in position, making the valve suitable for vacuum applications.

The valve's construction features a high-strength one-piece through-shaft secured by precision taper pins, providing a strong and reliable connection between the disc and stem. This design allows for field replacement if needed. Additionally, the blow-out proof stem ensures operator safety and eliminates OH&S concerns.

To enhance durability and extend valve life, the heavy-duty shaft bushing absorbs side thrusts and promotes disc alignment, reducing wear. This feature contributes to the valve's longevity and overall performance.

In summary, the Resilient Seated Butterfly Valve is a high-quality product that meets industry standards and offers reliable performance. With its certifications, superior sealing, robust construction, and safety features, it is a trusted choice for various applications. Choose the Resilient Seated Butterfly Valve from Challenger Valves for its exceptional quality and reliability.

Challenger Valves Butterfly Valve BFL


Challenger Valves
Butterfly Valve
  • Ductile Iron
  • DN50-DN600
  • Lugged
Connection standard
  • AS4087 PN16 (Table D)
  • AS2129 Table E
  • ANSI B16.5 #150
Design standard
  • AS4795.1
Operating temperature
  • AS4020 Compliance EPDM 0°C to 40°C General Application EPDM 0-85°C (Optimum Range) -10°C to 120°C (Intermittent) Nitrile -10°C to 80°C

Optional Extras

  • Actuators: Electric, Pneumatic or Hydraulic
  • Extension Spindles
  • Lockable Gearbox
  • Chainwheel Operation
  • Limit Switches
