Gate Valve - BBRG021

Ask a question
  • Full Engineer Workshop

  • In House Testing

  • Australian Owned and Operated Since 1984

  • ISO 9001 Quality Standards

Bronze Gate Valves from Challenger Valves are a reliable and high-performance valve that meets the strictest industry standards. These valves are WaterMark certified to AS1628 (IAPMO Oceana Cert No. WMKA1893), ensuring superior quality and performance. They are available in various sizes ranging from 15mm to 100mm and a maximum pressure of PN25.

Bronze gate valves feature a hydrostatic closure seat test accordance with ISO5208, ensuring a tight seal and preventing leakage. The pipe thread ends are designed to AS1722, PART1 SERIES (Parallel), while the dezincification resistant/female BSP ends are to BS21(1507), providing excellent resistance to corrosion and wear.

Bronze gate valves offer excellent temperature resistance, ranging from -10°C to 100°C, making them suitable for use in various high-temperature applications. They are easy to install, operate, and maintain, making them a cost-effective solution for many industries.

In summary, Challenger Valves' Bronze Gate Valves are a high-quality and reliable valve suitable for various industries. With their WaterMark certification, wide size range, maximum pressure, hydrostatic closure seat test, pipe thread ends, dezincification-resistant/female BSP ends, and temperature resistance, they are an ideal solution for any application that requires precise control of fluid flow. Choose Bronze Gate Valves from Challenger Valves for superior quality and performance.

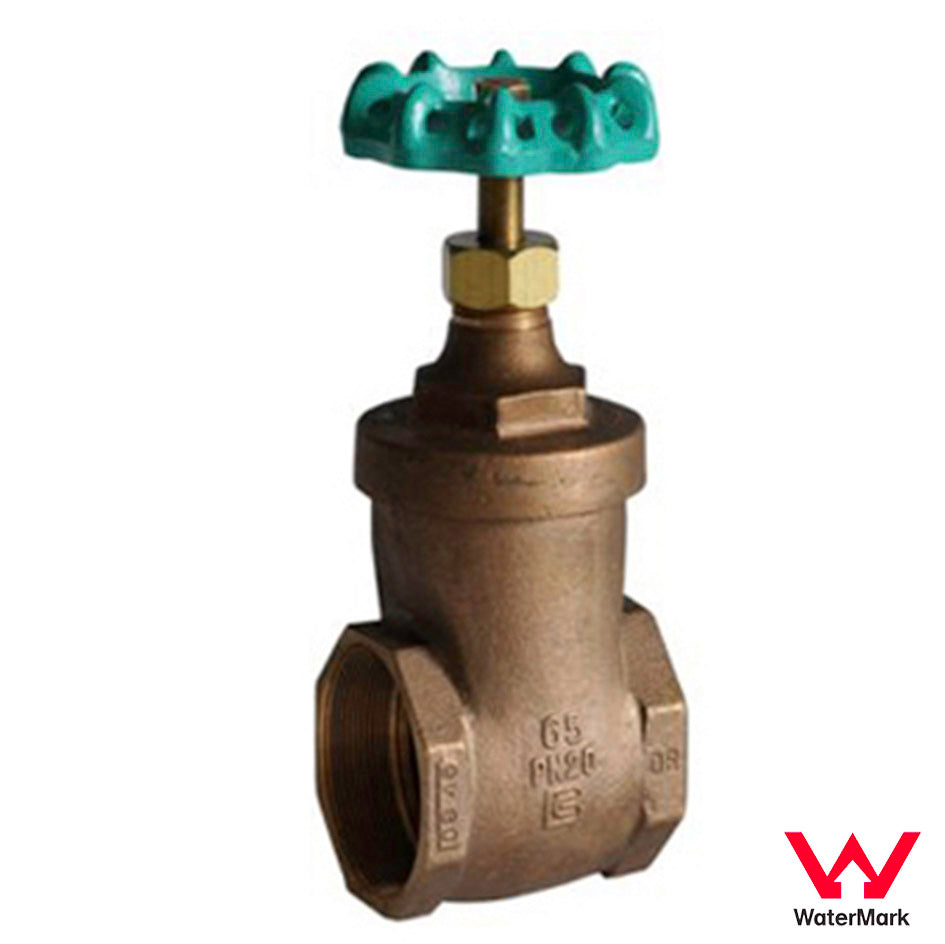

Challenger Valves Tested Bronze Gate Valve BBRG021

Specifications

Brand
Challenger Valves
Item
Tested Bronze Gate Valve
Model
BBRG021
Material
  • Bronze
Size
  • DN15-DN100
Connection
  • BSP
Connection standard
  • AS1722
Pressure rating
  • PN25
Design standard
  • WaterMark Approved
Operating temperature
  • -10-100°C

Optional Extras

Optional-extras
  • Hand wheel operator
  • Key Cap Operator
  • Gearbox operator
  • Electric actuator
  • Extensions
  • ISO Top Flange (Option DN80-DN300) (Standard DN350-DN750)
