Gate Valve - GVR345FF

Ask a question
  • Full Engineer Workshop

  • In House Testing

  • Australian Owned and Operated Since 1984

  • ISO 9001 Quality Standards

Data Sheet




The GVR345FF Model Gate Valve is an essential component for any fire protection system. With its resilient seated NRS design and flanged ends, this FM/UL certified valve ensures reliable and durable performance.

Optional Extra:
FM/UL POST INDICATOR

Can be buried underground directly, reducing the area of road excavation.

Small occupied area of the chamber which can keep road in good appearance, reducing the difficulty of construction and project cost.

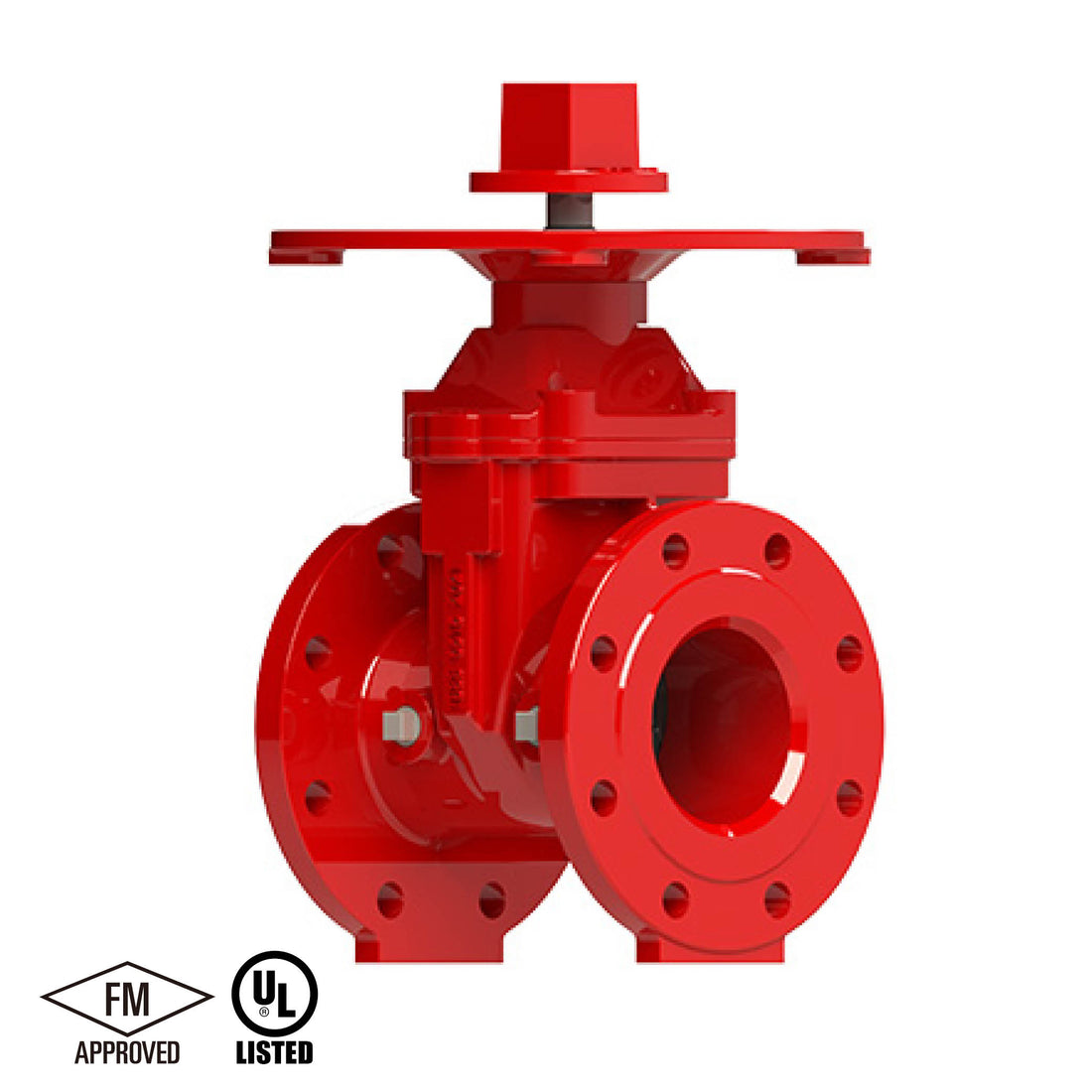

Challenger Valves Gate Valve GVR345FF

Specifications

Brand
Challenger Valves
Item
Gate Valve
Model
GVR345FF
Material
  • Ductile Iron
Size
  • DN50-300
Connection
  • Flanged
Connection standard
  • ANSI150
Pressure rating
  • 365PSI / PN25
Design standard
  • Conforms to AWWAC515/BS5163
  • FBE complies with AWWA C550
Operating temperature
  • -10˚C to 120˚C

Optional Extras
