Data Sheet

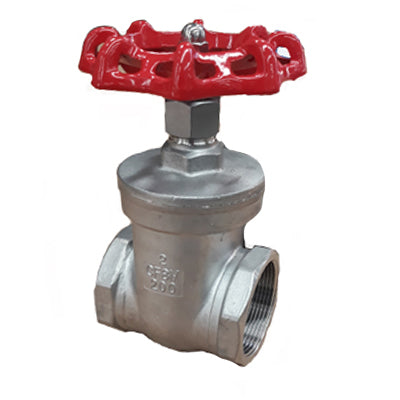

Threaded Gate Valve with Handwheel Operator - SS2029

The Stainless Steel Gate Valve with Handwheel Operator from Challenger Valves is a reliable and durable valve designed for industrial, chemical, and general applications. It is constructed with high-quality 316 stainless steel, ensuring excellent corrosion resistance and longevity.

This gate valve features threaded BSPT ends, providing secure and leak-free connections in various piping systems. The non-rising stem design allows for efficient operation in limited space applications.

The investment cast body construction guarantees precise manufacturing and a robust structure, ensuring reliable performance over time. The handwheel operator allows for manual control and operation of the valve, providing ease of use.

With a pressure rating of 200 PSI WOG (Water, Oil, Gas), this gate valve is suitable for a wide range of pressure applications. It has a working temperature range of -20°C to 200°C, allowing for reliable performance in different operating environments.

To ensure quality and reliability, the valve undergoes rigorous testing to API598 standards. It is designed according to AEN12266 specifications, meeting industry standards for performance and safety.

In summary, the Stainless Steel Gate Valve with Handwheel Operator from Challenger Valves offers durability, reliability, and ease of use. With its stainless steel construction, threaded BSPT ends, non-rising stem, investment cast body, pressure rating, wide temperature range, testing to API598, and compliance with AEN12266 standards, it is an excellent choice for industrial, chemical, and general applications. Choose the Stainless Steel Gate Valve with Handwheel Operator for its superior quality and performance.

Ray Valve Threaded Gate Valve with Handwheel Operator SS2029

Specifications

Brand
Ray Valve
Item
Threaded Gate Valve with Handwheel Operator
Model
SS2029
Material
  • Stainless Steel
Size
  • DN15 - DN50
Connection
  • Threaded BSPT
Pressure rating
  • 200PSI WOG
Design standard
  • AEN12266
  • API598
Operating temperature
  • -20°C - 200°C

Optional Extras
