Check Valve - WCR2

Ask a question
  • Full Engineer Workshop

  • In House Testing

  • Australian Owned and Operated Since 1984

  • ISO 9001 Quality Standards

Data Sheet





The Rubber Lined Wafer Check Valve is a reliable and efficient valve that features excellent retaining performance, high safety, and reliability. Its low flow resistance and effective backflow prevention make it suitable for use in various industries, including water treatment plants, chemical processing, and HVAC systems. The valve is maintenance-free and features two torsion springs that exert pressure on the disc, closing it quickly and automatically. Its quick close action prevents backflow and eliminates water hammer. The valve is easy to install and can be installed both vertically and horizontally. Choose the Fully Rubber Lined Wafer Check Valve for efficient and reliable flow control.

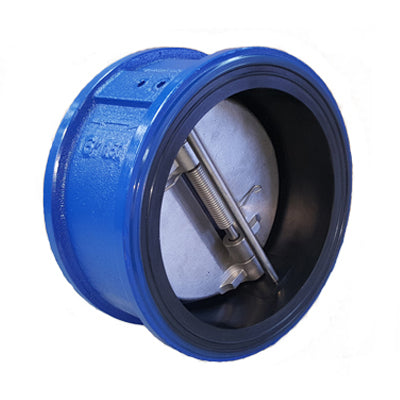

Challenger Valves Wafer Check Valve WCR2

Specifications

Brand
Challenger Valves
Item
Wafer Check Valve
Model
WCR2
Material
  • Ductile Iron
  • Rubber Lined
Size
  • DN50-DN300
Connection
  • Suits AS2129 Table E & D, AS4087 B5
Connection standard
  • ISO5752 Series 16
Pressure rating
  • PN10
Operating temperature
  • -10°C - 80°C

Optional Extras
