Ball Valve - SS2057N

Ask a question
  • Full Engineer Workshop

  • In House Testing

  • Australian Owned and Operated Since 1984

  • ISO 9001 Quality Standards

Data Sheet

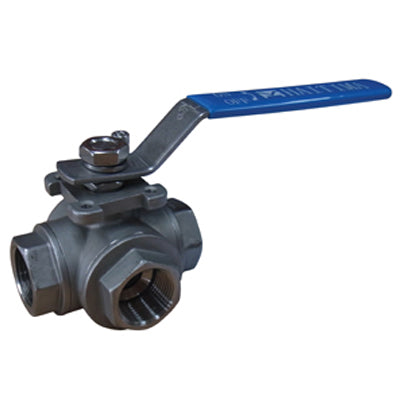

3 Way - Manual Threaded Ball Valve - SS2057N

The 3 Way - Manual Threaded Ball Valve from Challenger Valves is a versatile valve designed for industrial, chemical, and general applications where multi-directional flow control is required.

Featuring threaded BSPT ends, this valve ensures secure and leak-free connections in various piping systems. The lockable lever handle allows for easy operation and provides added security by preventing unauthorized tampering with the valve position.

The valve is designed with an ISO 5211 direct mounting pad, enabling easy and direct installation of actuators or other automation devices for efficient control and operation.

Equipped with a blowout proof stem, the valve offers enhanced safety by preventing the stem from being blown out under high-pressure conditions.

With a reduced bore design, the valve provides a smaller flow opening, making it suitable for applications where a lower flow rate is required.

The investment cast body construction ensures high-quality and precise manufacturing, resulting in a robust and long-lasting valve. It has a pressure rating of 1000 PSI, allowing it to handle high-pressure applications with ease.

The 3 Way - Manual Threaded Ball Valve has a wide working temperature range of -20°C to 200°C, making it suitable for various operating environments and process conditions.

To ensure quality and performance, the valve undergoes testing to API598 standards.

In summary, the 3 Way - Manual Threaded Ball Valve from Challenger Valves offers versatility, reliability, and ease of operation. With its threaded BSPT ends, lockable lever handle, ISO 5211 mounting pad, blowout proof stem, reduced bore design, investment cast body construction, high-pressure rating, wide temperature range, and adherence to API598 standards, it is an excellent choice for industrial, chemical, and general applications requiring multi-directional flow control. Choose the 3 Way - Manual Threaded Ball Valve for its superior quality and performance.

Ray Valve Ball Valve SS2057N

Specifications

Brand
Ray Valve
Item
Ball Valve
Model
SS2057N
Material
  • Stainless Steel
Size
  • DN8-DN50
Connection
  • BSPT
  • L or T Port available
Pressure rating
  • 1000PSI

Optional Extras
