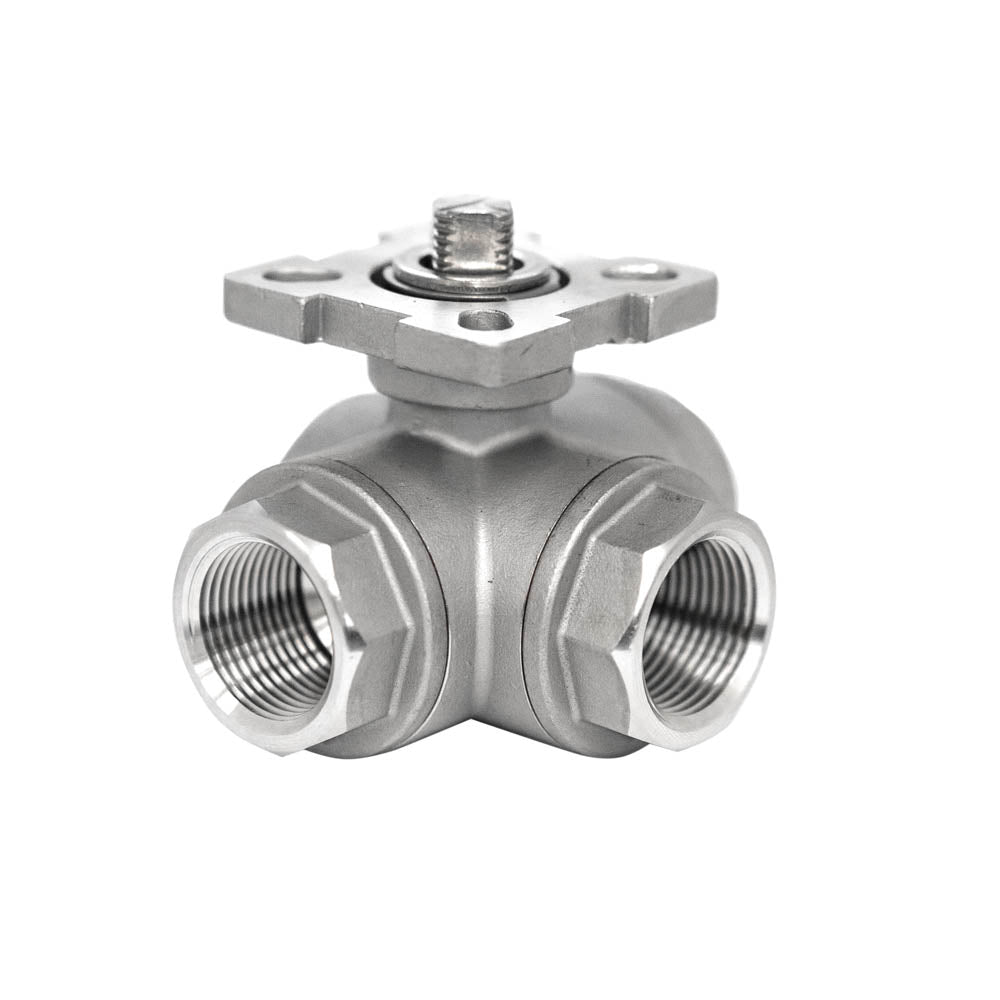

3 Way - Manual Threaded ISO Pad Ball Valve - SS2057D

The 3 Way - Manual Threaded ISO Pad Ball Valve from Challenger Valves is a versatile valve designed for industrial, chemical, and general applications where multi-directional flow control is required.

This ball valve features threaded BSPT ends, providing secure and leak-free connections in various piping systems. The lockable lever handle allows for easy operation and provides added security by preventing unauthorized tampering with the valve position.

The ISO 5211 direct mounting pad enables easy and direct installation of actuators or other automation devices, allowing for efficient control and operation of the valve.

The blowout proof stem design enhances safety by preventing the stem from being blown out under high-pressure conditions. This design feature ensures the valve's reliability and durability.

The 3 Way - Manual Threaded ISO Pad Ball Valve has a reduced bore, allowing for controlled flow and minimizing pressure drop.

The investment cast body construction ensures high-quality and precise manufacturing, resulting in a robust and long-lasting valve. It has a pressure rating of 1000 PSI, making it suitable for handling high-pressure applications.

The valve has a wide working temperature range of -20°C to 200°C, making it suitable for various operating environments and process conditions.

It undergoes testing to API598 standards, ensuring compliance with industry standards.

In summary, the 3 Way - Manual Threaded ISO Pad Ball Valve from Challenger Valves offers versatility, convenience, and reliability. With its threaded BSPT ends, lockable lever handle, ISO 5211 mounting pad, blowout proof stem, reduced bore, investment cast body construction, high-pressure rating, wide temperature range, and testing to API598, it is an excellent choice for industrial, chemical, and general applications. Choose the 3 Way - Manual Threaded ISO Pad Ball Valve for its superior quality and performance.

Ray Valve Ball Valve SS2057D


Ray Valve
Ball Valve
  • Stainless Steel
  • DN8-DN50
  • BSPT
  • L or T Port available
  • ISO5211 Direct Mounting Pad for Actuation
Pressure rating
  • 1000PSI

Optional Extras
