Ball Valve - SS2013ND

Ask a question
  • Full Engineer Workshop

  • In House Testing

  • Australian Owned and Operated Since 1984

  • ISO 9001 Quality Standards

Data Sheet
Installation Manual

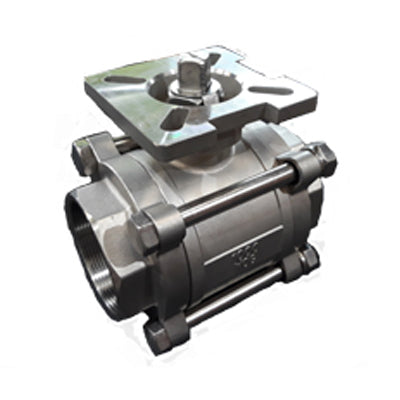

Threaded 3 Piece ISO Pad Ball Valve - SS2013ND

The Threaded 3 Piece ISO Pad Ball Valve from Challenger Valves is a versatile valve designed for industrial, chemical, and general applications. Its 3-piece swing-out design allows for inline maintenance, making it convenient and efficient for servicing or replacing internal components without the need to disconnect the valve from the pipeline.

This ball valve features threaded BSPT ends, providing secure and leak-free connections in various piping systems. The full bore design ensures unrestricted flow and minimal pressure drop, optimizing system performance.

The direct ISO 5211 mounting pad enables easy and direct installation of actuators or other automation devices, allowing for efficient control and operation of the valve.

The blowout proof stem and anti-static device enhance safety and ensure reliable performance under high-pressure conditions. The investment cast body construction ensures high-quality and precise manufacturing, resulting in a robust and long-lasting valve.

The Threaded 3 Piece ISO Pad Ball Valve has a pressure rating of 1000 PSI, making it suitable for handling high-pressure applications. It has a wide working temperature range of -20°C to 200°C, making it suitable for various operating environments and process conditions.

Replacement seal kits are available for easy maintenance and extended valve life. The valve undergoes testing to API598 standards and is designed according to EN12516 specifications.

In summary, the Threaded 3 Piece ISO Pad Ball Valve from Challenger Valves offers versatility, convenience, and reliability. With its swing-out design, threaded BSPT ends, full bore, direct ISO 5211 mounting pad, blowout proof stem, anti-static device, investment cast body, high-pressure rating, wide temperature range, and availability of replacement seal kits, it is an excellent choice for industrial, chemical, and general applications. Choose the Threaded 3 Piece ISO Pad Ball Valve for its superior quality, performance, and ease of installation.

Ray Valve Ball Valve SS2013ND

Specifications

Brand
Ray Valve
Item
Ball Valve
Model
SS2013ND
Material
  • Stainless Steel
Size
  • DN8-DN100
Connection
  • BSPT
  • 3 Piece 316 S/S Swing Out Design (allow for inline maintenance)
  • Direct ISO 5211 Mounting Pad
Pressure rating
  • 8mm-50mm 1000PSi, 65mm-100mm 800PSi
Design standard
  • EN12516
Operating temperature
  • -20°C~200°C

Optional Extras

Optional-extras
  • Replacement Seal Kits available
  • Available with full 316 Stainless Steel components
  • Jotun Epoxy Coating
  • Actuators: Electric, Pneumatic
  • Extension Spindles
  • Lockable Gearbox
  • Chainwheel Operation
  • Limit Switches
